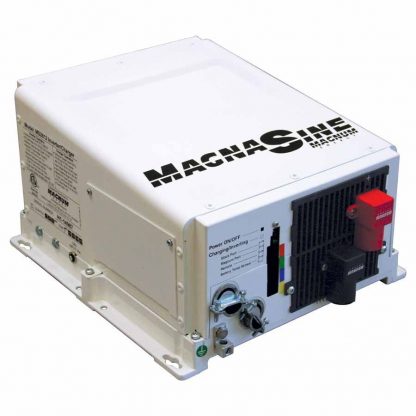

Magnum 4000W 120/240V Inverter

MS-PAE Series Inverter/Chargers are pure sine wave inverters designed specifically for the most demanding renewable energy applications. The Magnum MS4024PAE is powerful, easy-to-use and best of all, cost effective.

Magnums feature Power Factor Corrected battery chargers to deliver more charge current from small generators, easy-to-use status meter/remote control and either modified sine wave (RD/ME/MM Series) or pure sine wave (MS/MMS Series) output.

The MS-PAE Series Inverter/Charger offers dual output voltages (120/240VAC) in a single inverter. Magnum's unique design allows the inverter to share power unevenly through the two legs. This way, 90% of the power is available at 120VAC while still running 240V loads such as a well pump. If you have a 240VAC generator, you can charge through the inverter, balancing the generator loading.

For larger systems, two or more MS-PAE models can be stacked with the addition of the ME-RCR router. This communicates between the inverters and synchronizes their output.

Features of the Magnum MS4024PAE include:

• Parallel stacking, up to 4 inverter/chargers.
• Pure sine wave.
• 24 and 48V configurations.
• Lightweight base and cover.
